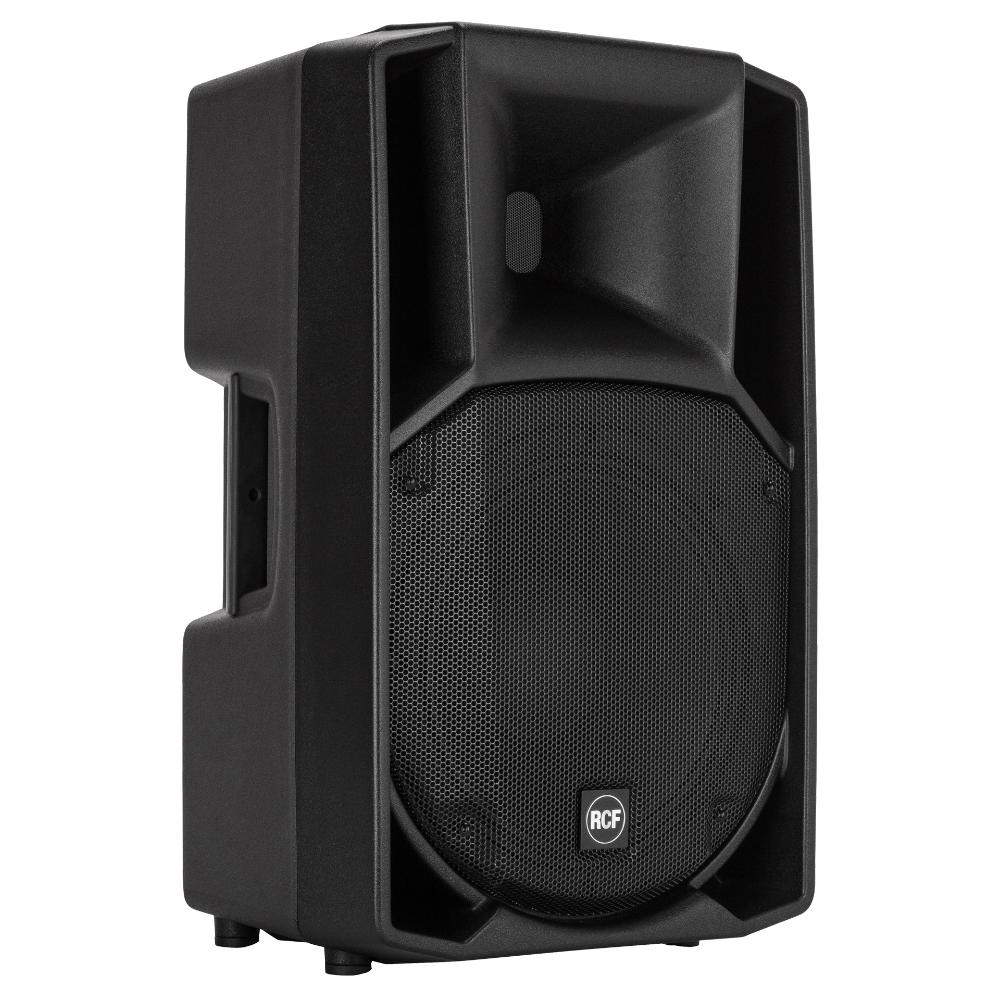

The RCF ART 712-A

The RCF ART 712-A is a flagship model in RCF’s acclaimed ART 7 Series, known for delivering professional-grade audio performance in a compact and portable package. This active, bi-amplified loudspeaker is designed to be a go-to solution for a wide range of sound reinforcement needs, offering a compelling blend of power, clarity, and advanced technology.

Key Features and Performance:
12-inch Woofer with 2.5-inch Voice Coil: The core of the low-frequency reproduction is a high-quality 12-inch woofer. Its large voice coil (typically 2.5 inches) ensures excellent power handling, precise control over the cone, and a deep, accurate bass response.

1.75-inch Compression Driver: For high frequencies, the ART 712-A employs a 1.75-inch voice coil compression driver with a titanium diaphragm. This driver delivers exceptional vocal clarity, detailed high frequencies, and controlled sound projection.

1400W Peak Class D Amplifier: The integrated Class D amplifier is a testament to RCF’s engineering prowess, providing a massive 1400 watts of peak power. This bi-amplified design splits the power efficiently: 1000W peak for the woofer and 400W peak for the compression driver. This ensures ample headroom for dynamic performances and loud environments.

DSP Processing and FiRPHASE Technology: Advanced digital signal processing (DSP) is at the heart of the ART 712-A’s sound. It manages crossover functions, equalization, soft limiting, and speaker protections. RCF’s proprietary FiRPHASE technology provides precise phase alignment and amplitude correction, resulting in transparent sound, absolute clarity, and perfect stereo imaging for all listeners without phase distortions or latency.

XBOOST Low Frequencies Enhancer: Newer versions of the ART 712-A (like the MK5) feature the XBOOST function, which enhances the depth and richness of low frequencies without compromising clarity or excessively taxing the woofer. This is particularly useful when the speaker is used full-range without a subwoofer.

High SPL Output: The ART 712-A can achieve a maximum SPL of 129 dB, making it capable of filling medium to large spaces with clear, powerful sound.

Wide Dispersion Horn: A 90° x 60° constant directivity horn ensures consistent and even sound dispersion across the listening area, providing a uniform audio experience for the audience.

Durable Polypropylene Composite Cabinet: The cabinet is constructed from a robust polypropylene composite material that is designed to dampen vibrations, ensuring reliability and durability even at high volume levels and under demanding stage conditions. The cabinet is also designed for versatile use, with a pole mount socket for stand placement and angled sides allowing it to function effectively as a stage monitor.

Ergonomic Design and Portability: With multiple handles (top and sides) and a relatively lightweight design (around 17.8 kg / 39.24 lbs), the ART 712-A is designed for easy transportation and setup.

Versatile Connectivity: It features balanced XLR and 1/4″ jack inputs, allowing for connection to microphones, mixers, and other audio sources. An XLR output link is provided for daisy-chaining multiple speakers or connecting to other audio devices.

Applications:
The RCF ART 712-A is exceptionally versatile and well-suited for:
Live Sound Reinforcement: For bands, solo artists, and DJs.
Stage Monitoring: Its cabinet design and sound quality make it an excellent wedge monitor.
Installed Sound: In clubs, bars, churches, conference rooms, and small theaters.
Corporate Events and Presentations: For clear voice reinforcement and background music.
Mobile PA Systems: Its portability and power make it ideal for mobile setups.

The RCF ART 712-A is a highly respected active loudspeaker that offers a superior combination of power, clarity, advanced processing, and rugged design, making it a valuable tool for any audio professional.
